Dreame S10 maintenance set

The Dreame S10 is the entry point to the S-series, Dreame’s European-market robot vacuum-mop line built on the L10 Ultra platform. At 5,300 Pa with a flat vibrating mop pad and a mop-wash dock that washes pads and blows fan-assisted air across them for drying, the S10 operates with less filter loading pressure than the 7,000 Pa models. The filter replacement window sits at four to six months under daily residential use, the longest on any S-series unit. Some regional S10 configurations do not include a sealed auto-empty dustbag; where that is the case, the dustbag interval does not apply.

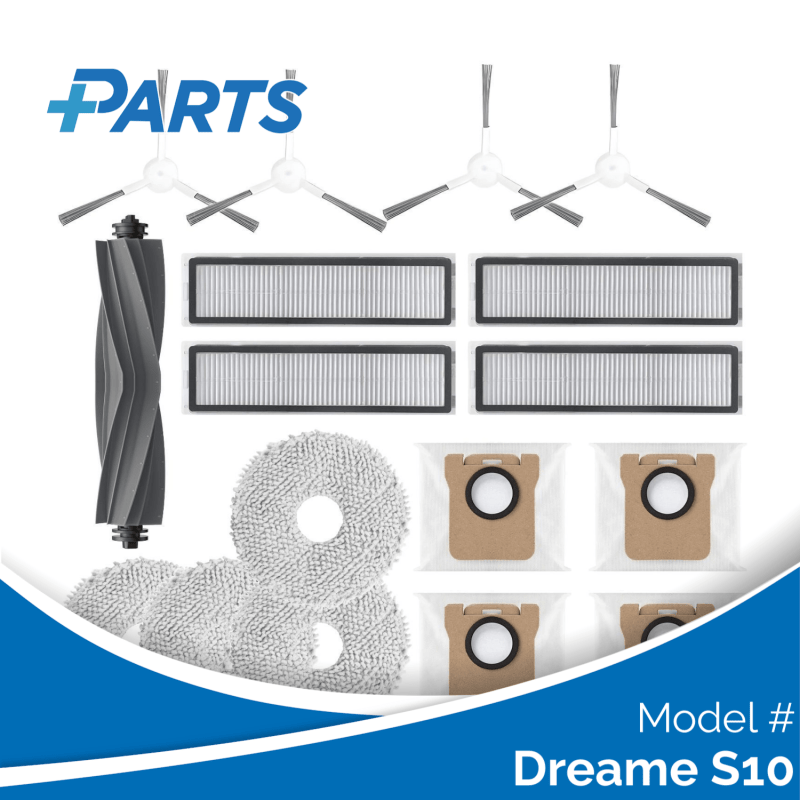

This set covers Plus.Parts® direct-fit alternatives to the original Dreame parts RAK11 / DRE-L10SU-KIT / RAK12: a rubber main brush, 4 side brushes, 4 mop pads, 4 HEPA filters and 4 dust bags – 17 parts in all. The side brush is the consumable that accumulates the most insidious wear on the S10. Hair and long fibres collect at the base of the brush stem where it connects to the motor post, forming a compacted ring that applies steady drag to the small side-brush motor. The motor draws increasing current as the fibre compacts, but the current stays below the stalled-motor threshold, so no error is raised. The symptom is a unit that sweeps floor edges and corners less thoroughly over time with no diagnostic indicator to flag the problem. Inspect the side brush mounting post every week: remove the brush, clear any wrapped material with fine scissors or a toothpick, cutting rather than pulling to avoid transferring tension to the motor shaft. Replace the side brush every three to six months. A bent or asymmetrical arm produces uneven reach along walls and should be replaced immediately rather than straightened; the flexible material takes a permanent set once deformed. Four side brushes in this set cover twelve to twenty-four months of service at the three-to-six-month replacement cadence, so a fresh brush is always available when the current one shows wear.

Behind the set is a real team at VacuumReviews.eu, so if edge cleaning deteriorates despite a fresh side brush, reach out and we can help check whether the side-brush motor or a navigation pattern is the factor.

At a glance

• Direct-Fit Compatibility – Side brushes, filters, mop pads and the main brush clip into the Dreame S10 chassis without trimming or adapters.
• Long-Lasting Components – Four side brushes per set cover twelve to twenty-four months of daily use at the recommended replacement cadence.
• Responsive Support – VacuumReviews.eu can help diagnose edge-cleaning gaps and advise on side brush inspection frequency for your floor types.
