Roborock Qrevo Curv 5XC – Plus.Parts® Replenishment Kit

The Roborock Qrevo Curv 5XC is the Roborock Qrevo Curv sold under a regional market variant code — same AdaptiLift hardware, same consumable set, same maintenance schedule. The platform operates at 18,500 Pa with the DuoDivide dual-roller brush, extends FlexiArm dual spinning mop pads outward for wall coverage and lifts them to 17 mm for clean dock return, uses a FlexiArm side brush on an extending arc arm, and docks to Dock 3.0 with 75 °C mop washing and warm-air drying. The AdaptiLift chassis raises the robot body to cross floor transitions up to 4 cm; the pivot rails that drive the lift are a monthly maintenance item specific to all Qrevo Curv variants, as grit accumulation reduces lift travel progressively until the robot begins failing thresholds it previously cleared. A monthly wipe of the rails with a dry cloth is the single additional step that keeps this mechanism reliable. At 18,500 Pa the filter loads roughly three times faster than on the entry Qrevo, making a two-month replacement cycle the appropriate interval.

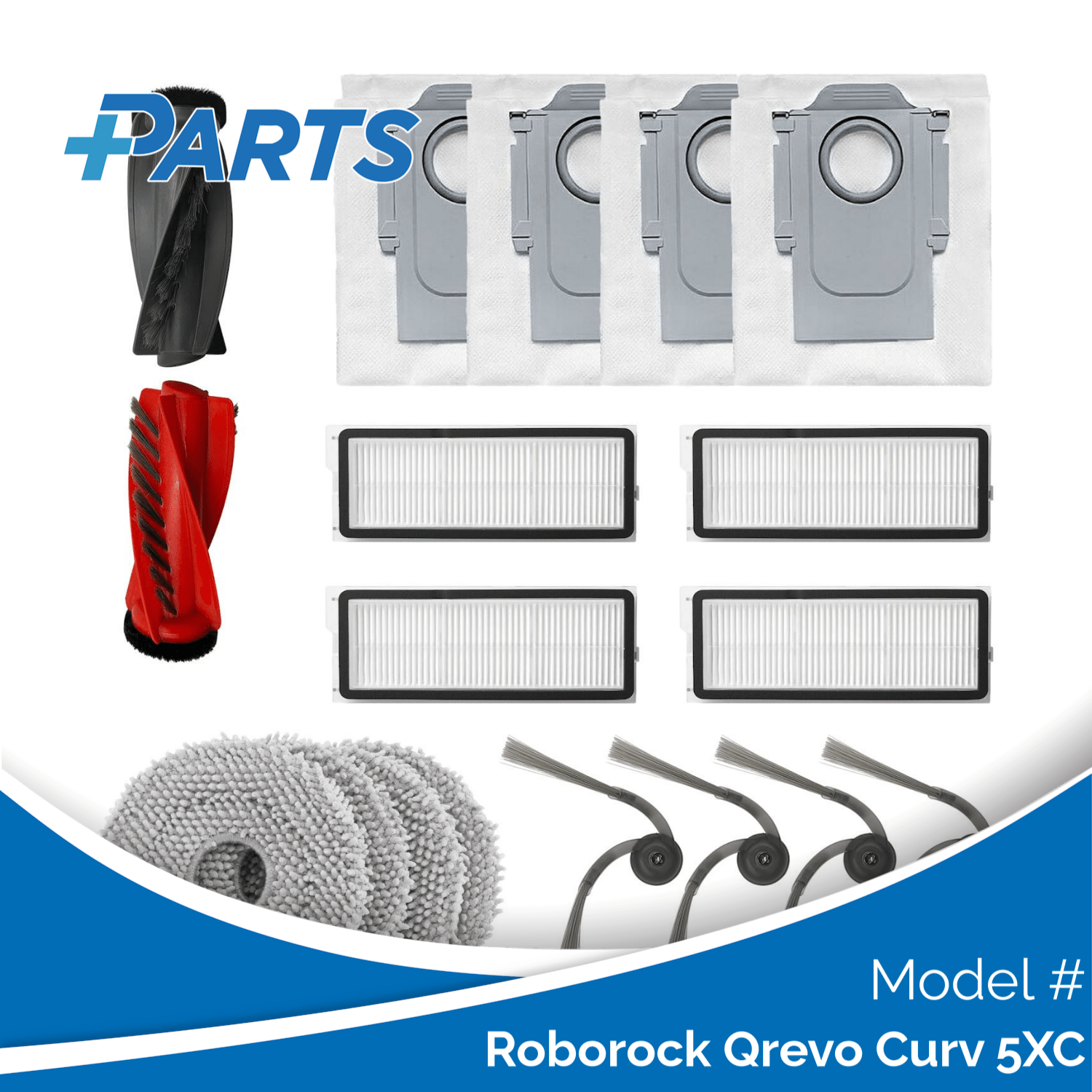

This set keeps the Qrevo Curv 5XC supplied with Plus.Parts® consumables built as a direct-fit alternative to the original Roborock part (also listed as 8020411 and HCTZ48RR): one DuoDivide brush set, four FlexiArm side brushes, four HEPA filters, four mop pads and four dock dust bags — seventeen parts in all. Remove both DuoDivide rollers every one to two weeks; the central divider channel between them must be cleared at every brush service, as accumulated material in the channel redirects hair onto both rollers simultaneously and produces what appears to be brush failure but resolves entirely when the channel is cleared. Replace the full brush set every five to seven months. Tap the HEPA filter on all four frame edges every one to two weeks; mid-grey colouration at this suction tier is a replacement signal, not a prompt to continue tap-cleaning, and a new filter is due at the two-month mark. Supplied by Plus.Parts® as a direct-fit alternative to the original parts.

At a glance

• Matched to Your Device – The DuoDivide brush, HEPA filters, FlexiArm side brushes, mop pads and dock bags are selected for the Qrevo Curv 5XC brush bay, filter housing, arm mount and Dock 3.0 bag port.
• Built for the 18,500 Pa Tier – Filters and mop pads chosen for the elevated airflow load and 75 °C dock wash of this platform tier.
