Roborock V10VIV – Plus.Parts® Replacement Parts Set

The Roborock V10VIV is the V-series market variant of the Roborock first-generation 18,500 Pa flagship platform, sharing its full specification with the Qrevo Edge and Qrevo Curv: 18,500 Pa suction through the DuoDivide dual-roller anti-tangle brush, FlexiArm dual spinning mop pads that extend outward for wall-edge coverage, a FlexiArm side brush on an extending arc arm, and Dock 3.0 with 75 °C mop washing and warm-air drying. The elevated suction at this tier fills the HEPA filter medium approximately three times faster than on the original Qrevo, shortening the effective replacement interval to around two months under daily use. The 75 °C dock wash temperature deposits mineral scale on the spray nozzles faster in hard-water areas, changing the nozzle maintenance cadence to every two to three weeks.

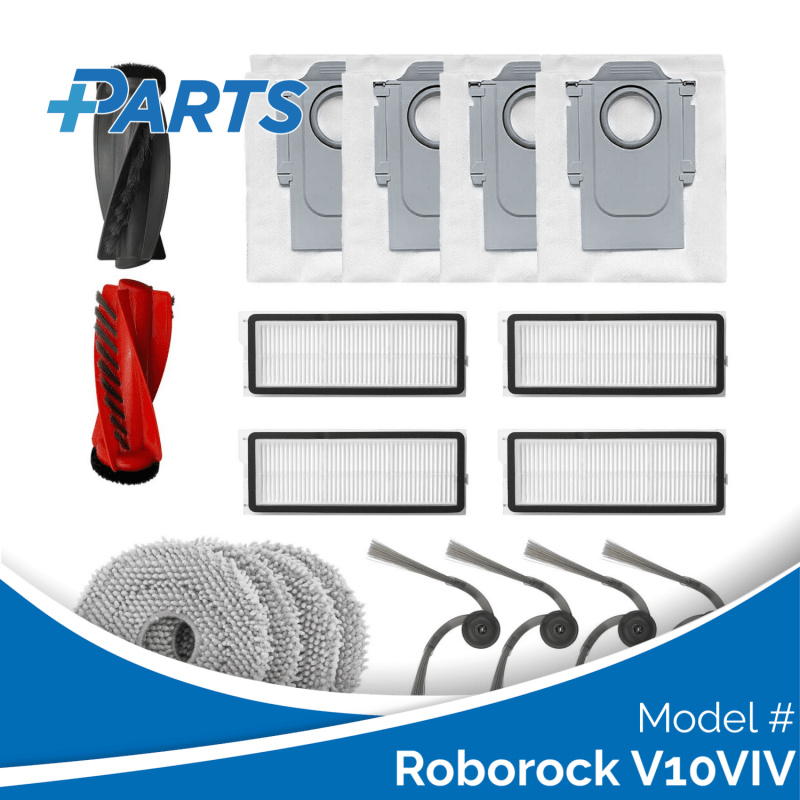

This set keeps the Roborock V10VIV stocked with Plus.Parts® consumables built as a direct-fit alternative to the original Roborock part (also listed as 8020411 and HCTZ48RR): one DuoDivide brush set, four FlexiArm side brushes, four HEPA filters, four mop pads and four dock dust bags, seventeen parts in all. Remove both DuoDivide rollers every one to two weeks and clear the central divider channel at every brush service; the channel must stay clear for the anti-tangle mechanism to function, and a loaded channel wraps both rollers simultaneously in a way that closely resembles brush failure but resolves entirely once the channel is cleaned. Replace the full brush set every five to seven months. Tap the HEPA filter firmly on all four frame edges every one to two weeks, never washing it in water, and replace it at two months rather than waiting for full mid-grey saturation, at 18,500 Pa a loaded filter causes an immediate and steep drop in pickup.

Check the FlexiArm side brush arm rail monthly and wipe it with a dry cloth to keep it moving freely through its full arc; even partial rail resistance prevents the brush from reaching the wall and leaves a visible dust strip along skirting boards on every run. Inspect the side brush hub weekly for wrapped hair and replace the brush every three to six months.

At a glance

• Matched to Your Device – The DuoDivide brush, HEPA filters, FlexiArm side brushes, mop pads and dock bags are all selected for the V10VIV brush bay, filter housing, arm mount and Dock 3.0 bag port.
• Built for the 18,500 Pa Tier – Filters and mop pads sized for the elevated airflow load and 75 °C dock wash of this platform tier.
