Narwal Freo Z Ultra – Plus.Parts® Maintenance Set

The Narwal Freo Z Ultra marked the step up to hot-water mopping in the Freo range: 12,000 Pa suction, a pair of Reuleaux triangular pads pressed against the floor at twelve newtons with the EdgeSwing arm reaching into corners, and a dock that washes those pads at 75°C under DirtSense 2.0 adaptive temperature control before warm-air drying them. The hot wash keeps the pads themselves cleaner between runs, stretching their machine-wash interval to around six weeks, but it pushes a heavier residue load through the dirty-water tank, which wants emptying every two to three days. Inside the robot, the Zero-Tangle 2.0 floating roller passes most hair to the bin rather than winding it around the brush, which leaves the washable HEPA-rated dust bin filter as the only fine-filtration point in the airpath – so it loads steadily and is the first thing to check when suction drops. The triangular pads, meanwhile, wear from their corners inward and run a one-to-three-month replacement cadence depending on how hard EdgeSwing works them.

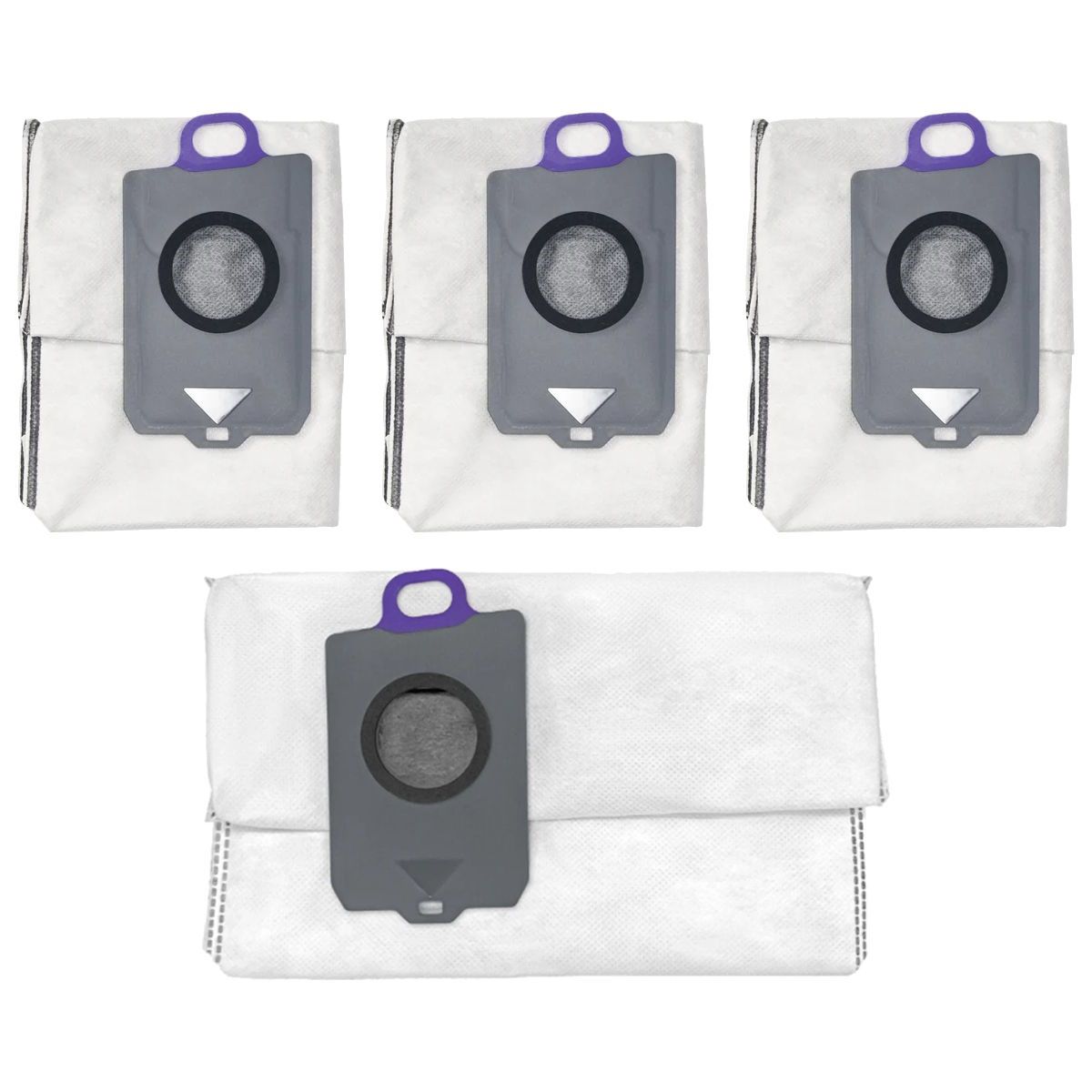

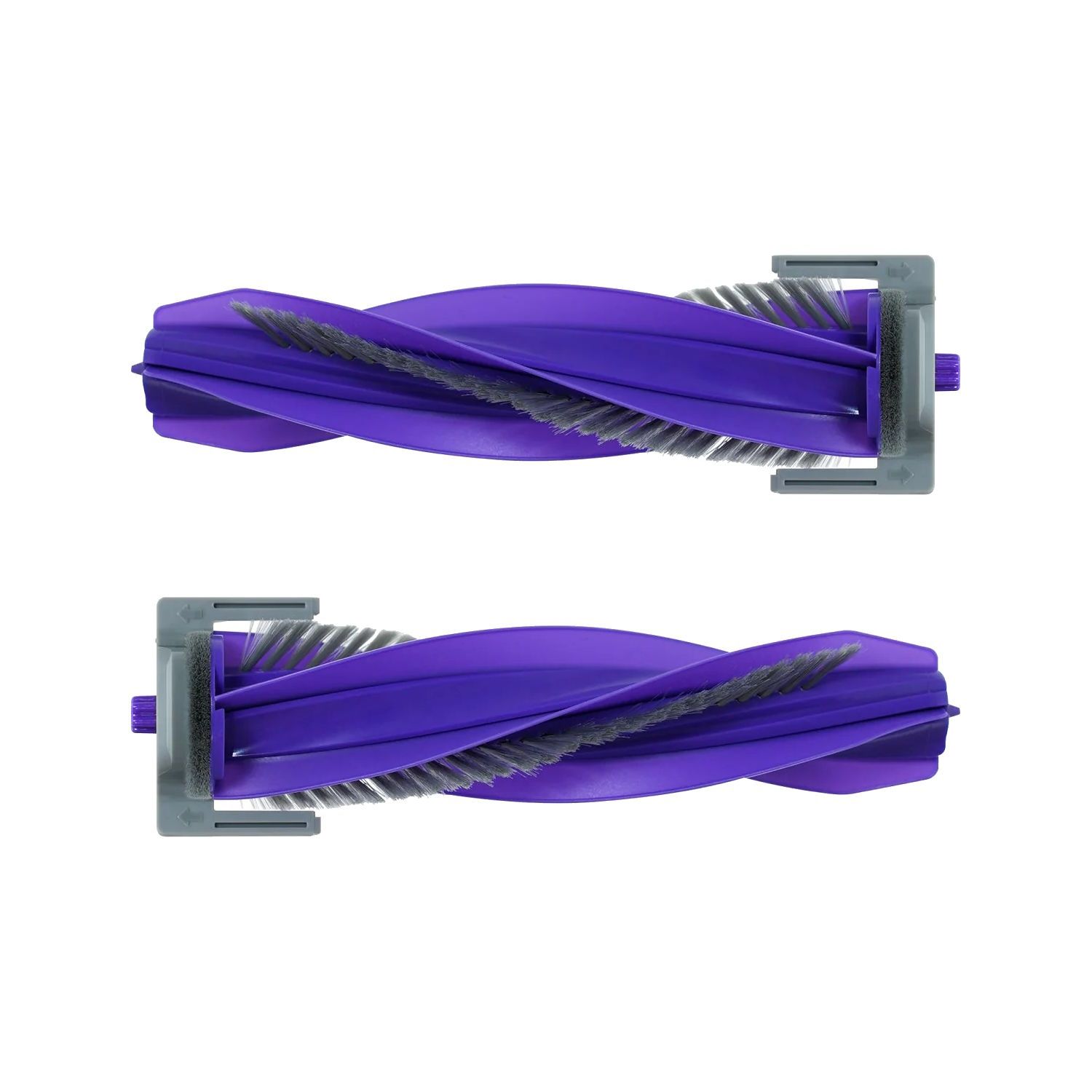

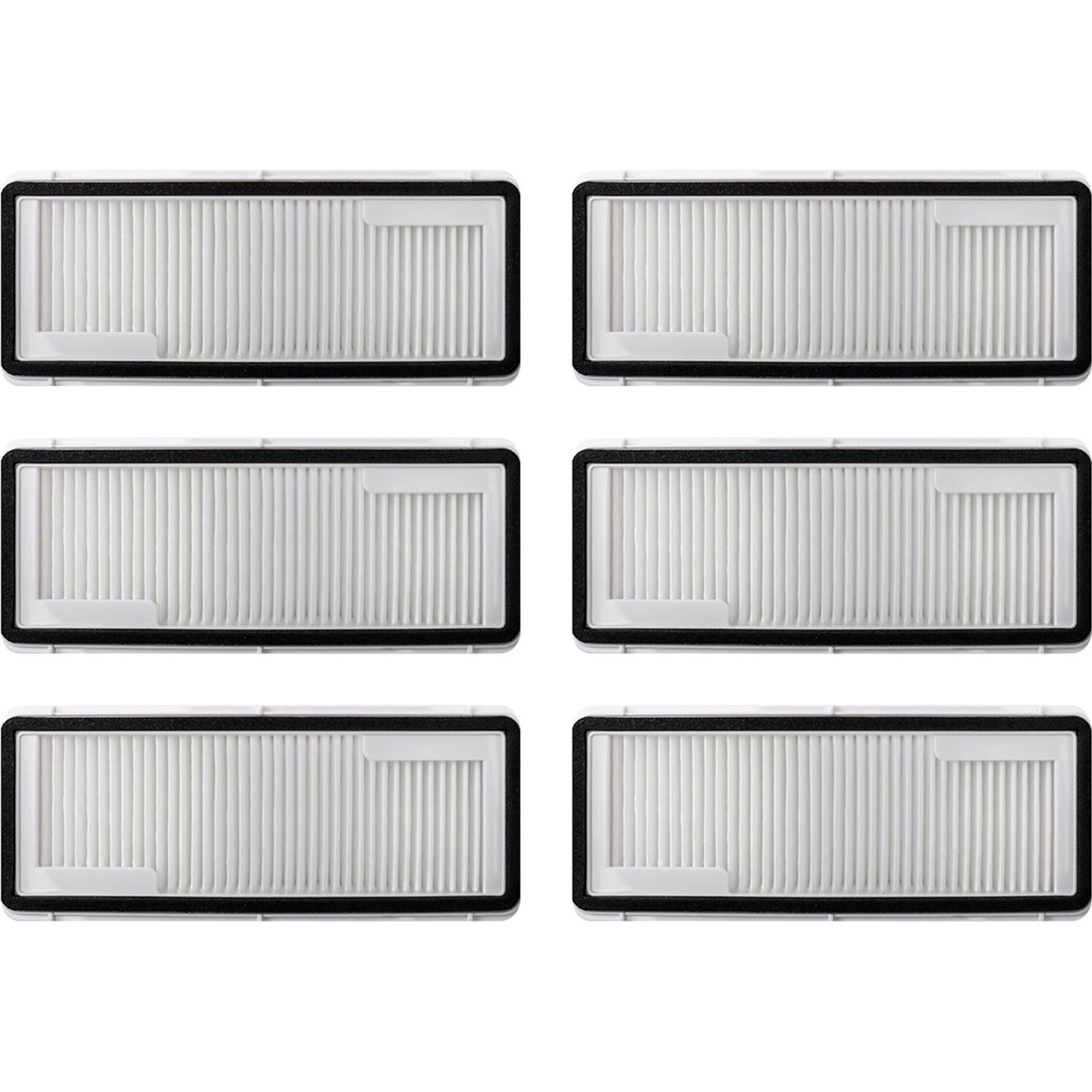

This maintenance set keeps that whole cycle stocked with Plus.Parts® components built as a direct-fit alternative to the original Narwal part: two zero-tangle main brushes, four side brushes, six dust bin filters, four large antibacterial dust bags, four Reuleaux mop pads and two skirting cloths, each sized to the Freo Z Ultra’s own mounts so fitting them is no different from swapping the originals. The filters earn their place first, because with no dock HEPA stage on this model the bin filter carries all the fine-dust work; a tighter media holds suction steady across a full three-month interval instead of letting dust slip back through and pushing the motor to draw extra current.

The Reuleaux pads keep an even scrubbing face through the dock’s repeated hot washes, so they distribute water evenly to the corners rather than streaking, and the floating roller stays supple on its reinforced arm rather than stiffening early.

At a glance

• Direct-Fit Compatibility – Every part is matched to the Freo Z Ultra’s own brush mounts, mop plates and filter bay, so installation is tool-free and works exactly like swapping the original CP-PJ-A00133-00-00 components.
• Built to Last – Denser filter media, hard-wearing Reuleaux mop pads and a supple floating-roller compound that hold their performance across the full replacement cycle instead of fading early.
