Narwal YJCC016 – Plus.Parts® Maintenance Set

The Narwal YJCC016 is one of the bare OEM model codes Narwal uses for its first-generation ambient Freo robot, listed by some retailers in place of a marketing name and sharing every consumable with the Freo X Ultra, J4, J4 Lite and YJCC015. It cleans at 8,200 Pa with a pair of Reuleaux triangular pads at 180 RPM under roughly 12 N of downforce, a zero-tangle floating roller, and an all-in-one dock built around a 1 L dust bag, an ambient-temperature mop scrub and passive-airflow drying.

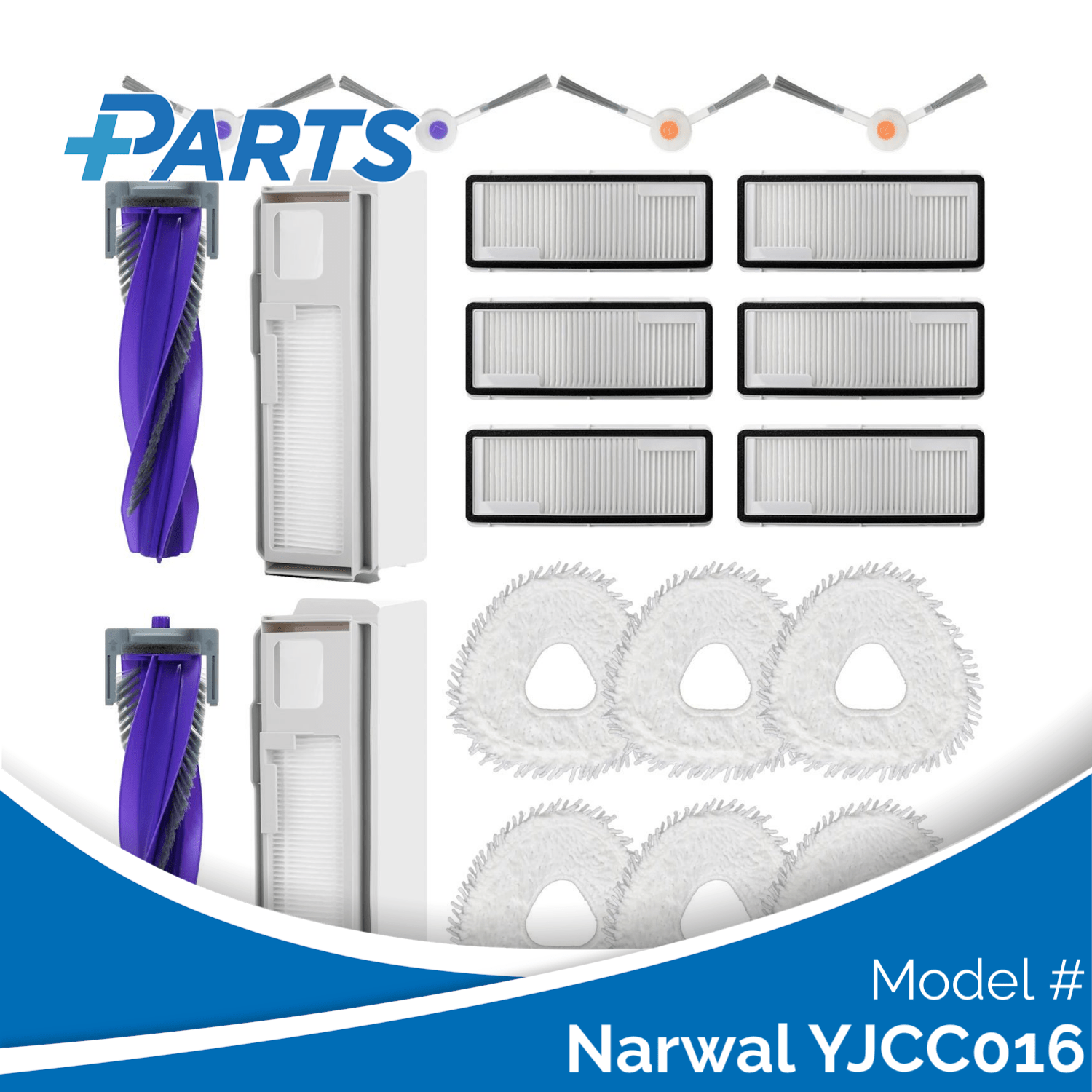

This set keeps the YJCC016 stocked with Plus.Parts® consumables built as a direct-fit alternative to the original Narwal part: two floating roller brushes, four side brushes, six washable dust-bin filters, six triangular mop pads and two 1 L dock dust bags, twenty parts in total. Remove the floating roller every two weeks to check the bearing caps at both axle ends, replacing it every three to six months once the arm no longer self-levels. Tap the HEPA-rated bin filter weekly, rinse it under cool water every four weeks, dry it for 24 hours and replace it every three months – it is the only fine-filtration stage on this platform, and a clogged filter quietly raises the motor’s current draw.

Replace both triangular pads at once on a one-to-three-month cadence, since they wear at the corners and an uneven pair streaks the floor, and machine-wash them at about 40°C roughly monthly to keep mildew out – the single routine the app never prompts and the usual source of a stale mop smell on ambient docks. Clear the side brush shaft every two weeks and replace the brush every three to six months, swap the 1 L dust bag every six to seven weeks, and empty the dirty-water tank weekly while wiping the tray scraper ribs. When humidity is high and pads stay damp overnight, lift them out and dry them flat. Behind the set is a real team at VacuumReviews.eu: if you are not sure whether your unit is a YJCC016 or a named Freo, the parts match, so reach out and we will confirm it and sort anything else.

At a glance

• Matched to Your Device – The floating roller, washable filters, triangular pads, side brushes and 1 L dust bags fit the YJCC016 brush bay, filter chamber and ambient dock, so each part seats without guesswork.
• Long-Lasting Components – HEPA-rated filters sized for full airflow and hard-wearing Reuleaux pads chosen to hold absorbency across the ambient wash-and-dry cycle.
