Roborock Qrevo Curv 5A1 – Plus.Parts® Service Kit

The Roborock Qrevo Curv 5A1 is the Roborock Qrevo Curv sold under a regional market code — same AdaptiLift robot, same consumable set, same maintenance schedule as the named Qrevo Curv. The platform runs at 18,500 Pa with the DuoDivide dual-roller anti-tangle brush, deploys FlexiArm dual spinning mop pads that extend for wall-edge coverage and lift to 17 mm for dock approach, uses a FlexiArm side brush, and docks to Dock 3.0 with 75 °C mop washing and warm-air drying. The AdaptiLift chassis raises the robot body to cross floor transitions up to 4 cm and carries the pivot rails that are a monthly maintenance item specific to all Qrevo Curv variants; grit on the rails progressively reduces lift travel and the first sign is usually the robot failing to clear a threshold it previously managed without difficulty. At 18,500 Pa the filter medium loads roughly three times faster than on the entry Qrevo, and the 75 °C dock wash temperature deposits scale on the spray nozzles faster in hard-water areas, changing both maintenance cadences accordingly.

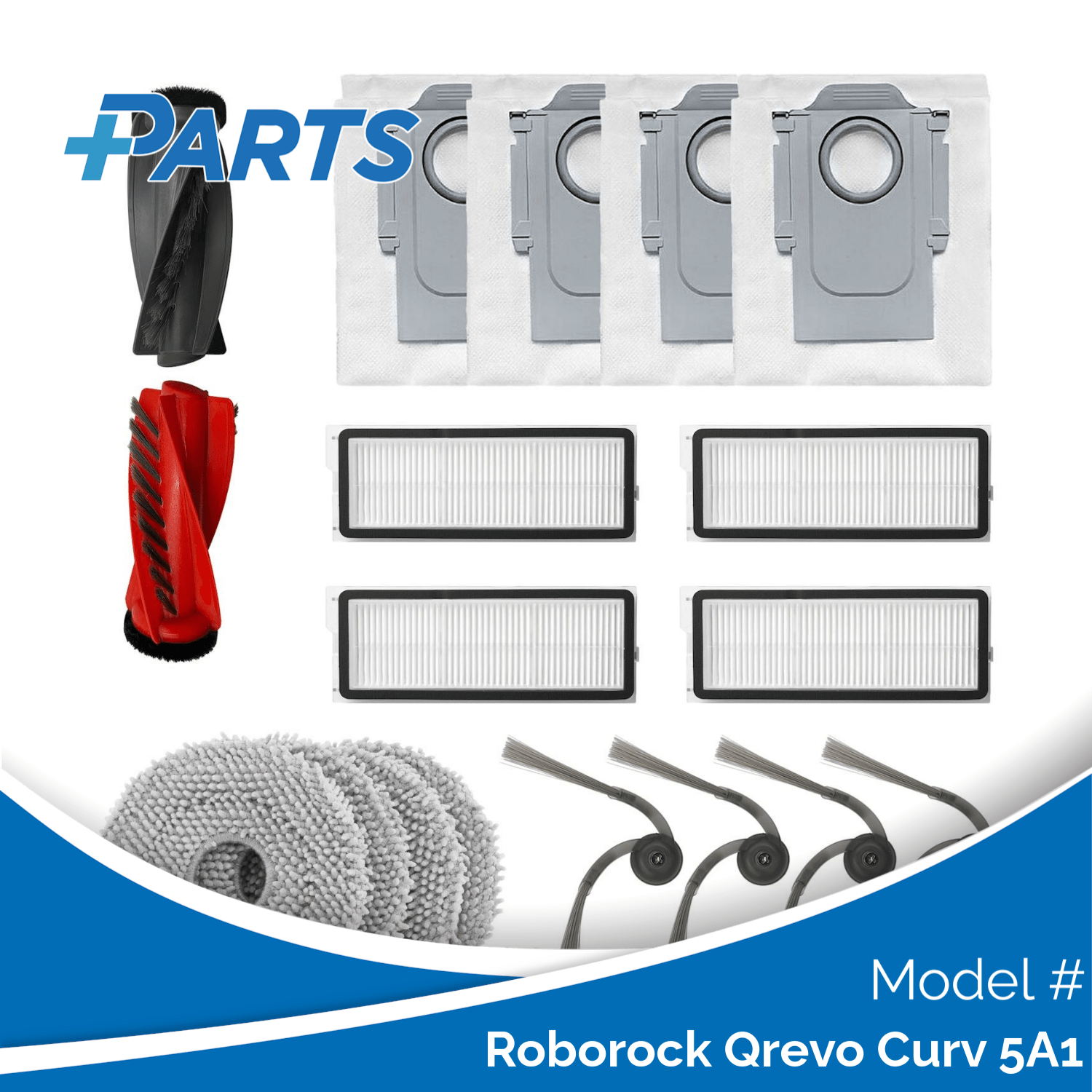

This set keeps the Qrevo Curv 5A1 supplied with Plus.Parts® consumables built as a direct-fit alternative to the original Roborock part (also listed as 8020411 and HCTZ48RR): one DuoDivide brush set, four FlexiArm side brushes, four HEPA filters, four mop pads and four dock dust bags — seventeen parts in all. Remove both DuoDivide rollers every one to two weeks and clear the central divider channel at every service; the channel separates the hair catch on each roller and must stay clear for the anti-tangle system to work. Replace the brush set every five to seven months. Tap the HEPA filter on all four frame edges every one to two weeks and replace at two months; at this tier mid-grey colouration signals rapid saturation and continuing to tap-clean a grey filter recovers very little additional airflow. Supplied by Plus.Parts® as a direct-fit alternative to the original parts.

At a glance

• Matched to Your Device – The DuoDivide brush, HEPA filters, FlexiArm side brushes, mop pads and dock bags fit the Qrevo Curv 5A1 brush bay, filter housing, arm mount and Dock 3.0 bag port.
• Built for the 18,500 Pa Tier – Filters and mop pads chosen for the elevated airflow load and 75 °C dock wash of this platform tier.
