Narwal Freo Z10 – Plus.Parts® Maintenance Set

The Narwal Freo Z10 raises the Freo platform to 18,000 Pa and runs dual Reuleaux triangular mop pads at 8 N of downforce with the EdgeSwing routine that reaches the pads into corners and along skirting boards. Its dock runs a two-stage wash – a main scrub at 40 to 60°C followed by a 75°C final rinse – which keeps the pads cleaner between runs but pushes a heavier residue load through the dirty-water tank. That sets a clear service rhythm: the triangular pads wear from the corners inward and are replaced every one to three months, both together even if only one looks worn; the floating zero-tangle roller brush sends almost all debris to the bin, so the HEPA-rated bin filter carries the fine-filtration load and should be tapped weekly, rinsed every four weeks and replaced every three months; the side brush bends over three to six months; the 2.5 L dock dustbag lasts up to 120 days; and the dirty-water tank wants emptying every two to three days.

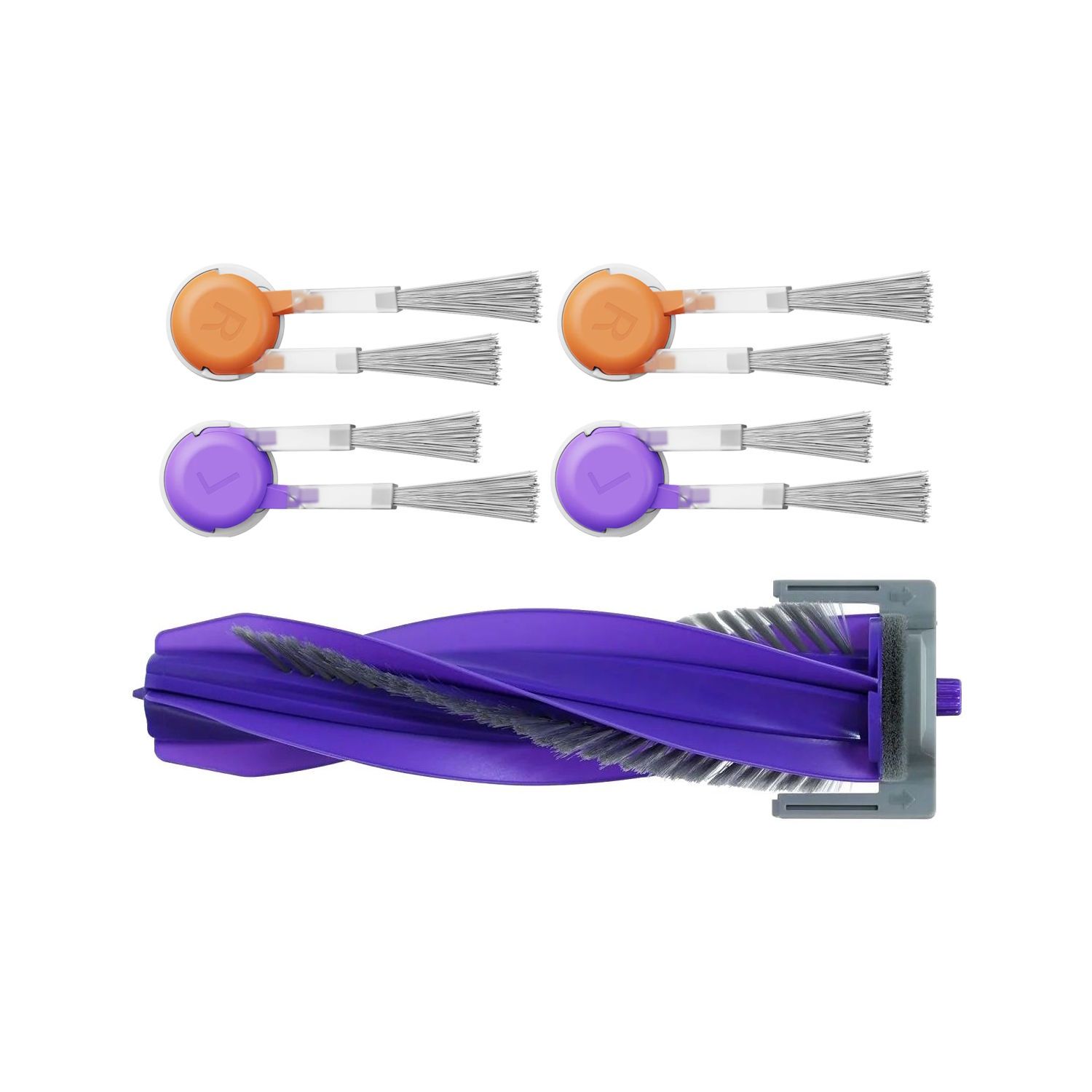

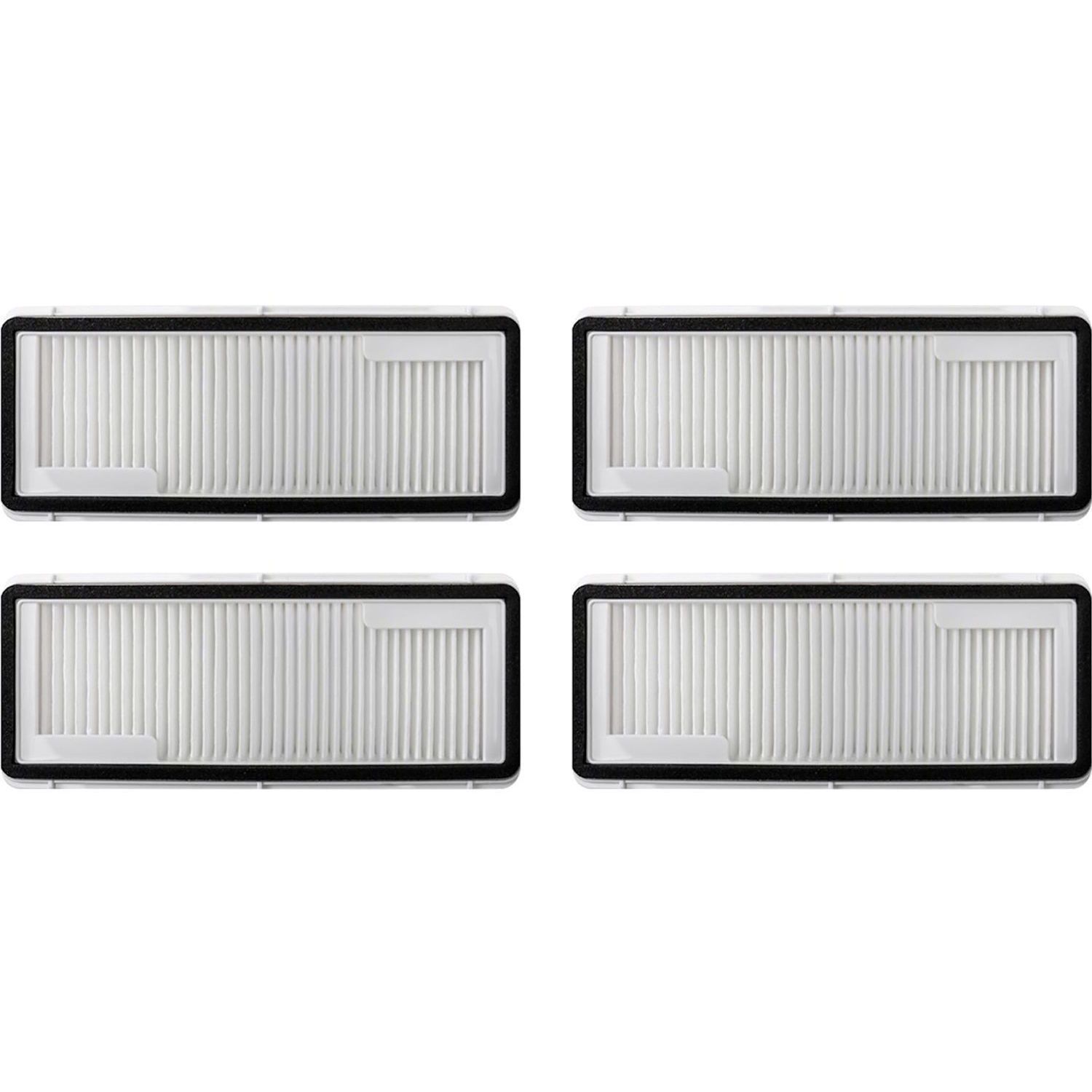

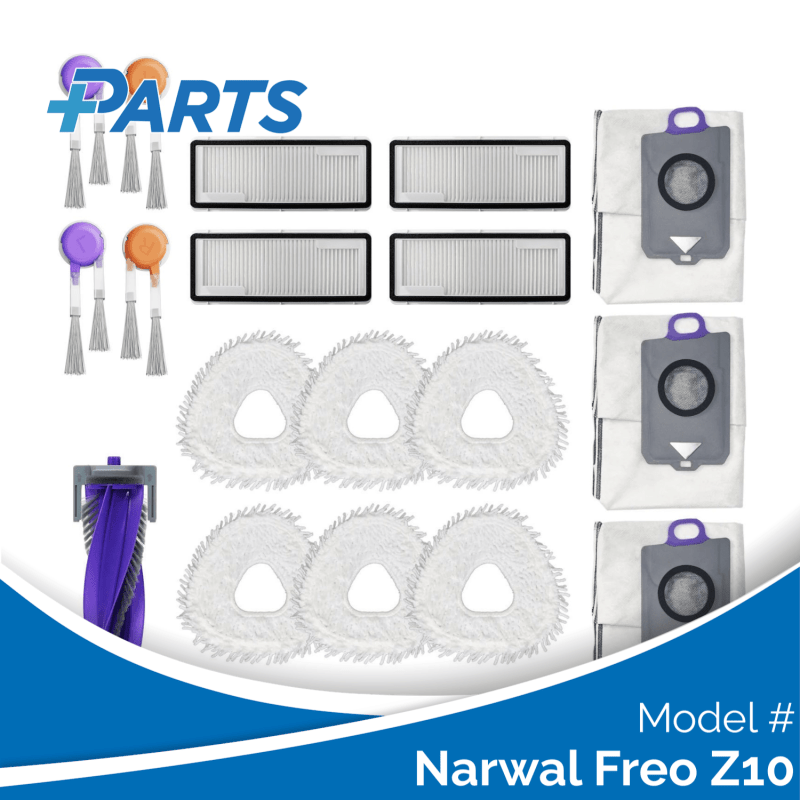

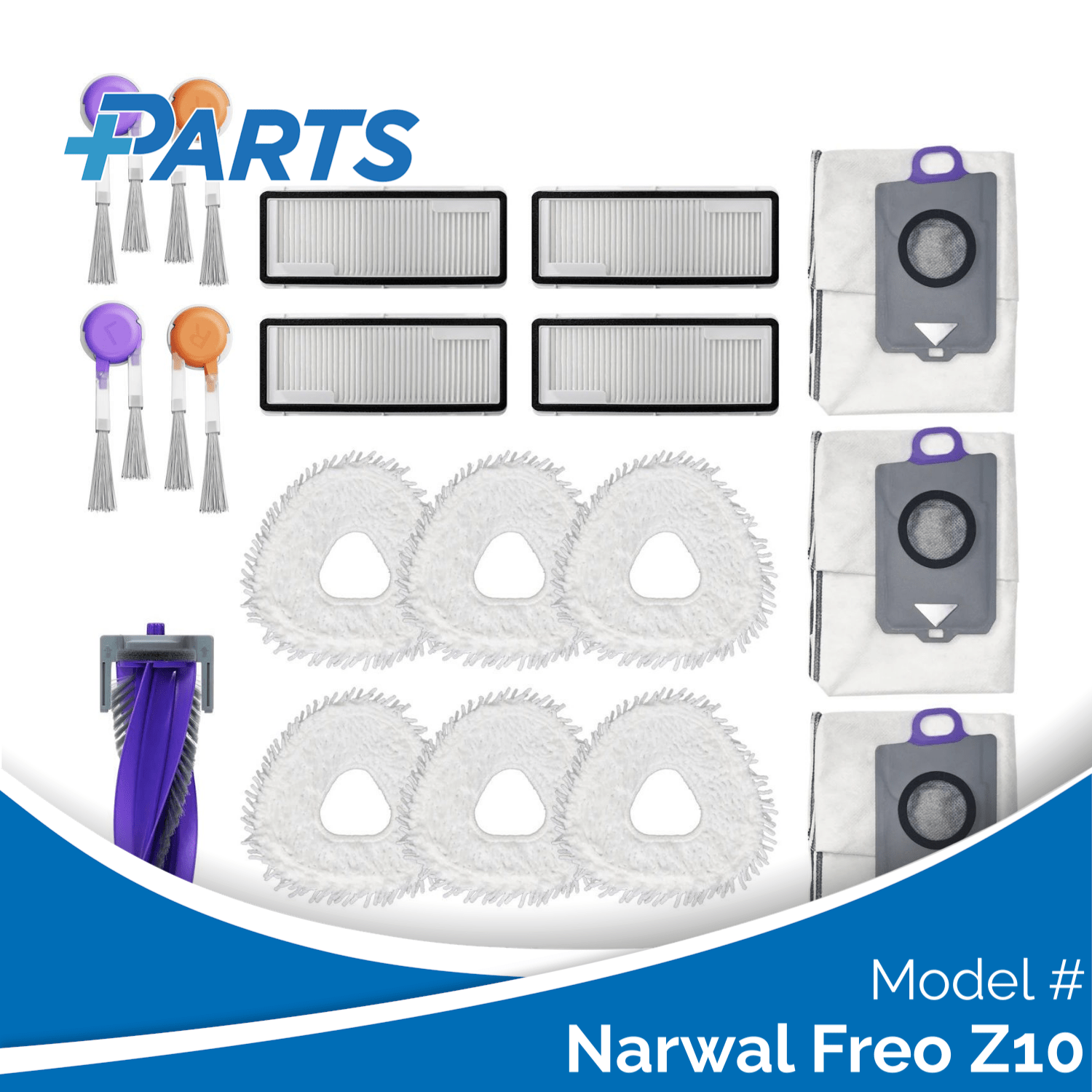

This maintenance set keeps each of those intervals stocked with Plus.Parts® components built as a direct-fit alternative to the original Narwal part: one anti-tangle main brush, four side brushes, four dustbin filters, three antibacterial dust bags and six mop pads – eighteen parts sized to the Freo Z10’s own mounts so fitting them is no different from swapping the originals. The filters do the heavy lifting on air quality – on a zero-tangle platform the bin filter is the only fine-filtration stage, so a tighter media keeps the 18,000 Pa suction steady across the full interval, while a loose generic filter lets fine dust drift back into the room and makes the motor draw extra current.

The mop pads are cut to the Reuleaux triangle geometry so their three corners track evenly under the EdgeSwing routine instead of fraying lopsided, and the antibacterial dust bags seal the hot-wash debris without leaking odour back into the dock.

At a glance

• Direct-Fit Compatibility – Every part matches the Freo Z10’s brush mount, filter bay, pad plates and EdgeSwing dock, so fitting is tool-free and works exactly like swapping the original CP-PJ-A00187-00-00 parts.
• Built to Last – Reuleaux-cut mop pads, antibacterial dust bags and a HEPA-rated bin filter chosen to hold their performance across the full replacement cycle.
• Recommended by Our Team – This is the set our review team points Freo Z10 owners toward, drawn from hands-on experience with how the hot-wash Z platform wears.
