Narwal YJCC015 maintenance set

The Narwal YJCC015 is the bare OEM model code some retailers list instead of a marketing name, and it sits on Narwal’s first-generation ambient Freo platform alongside the Freo X Ultra, J4 and J4 Lite. It runs 8,200 Pa suction, a pair of Reuleaux triangular mop pads spinning at 180 RPM under about 12 N of pressure, a zero-tangle floating roller and an all-in-one dock with a 1 L dust bag, an ambient-temperature mop scrub and passive-airflow drying. Every consumable in this set is shared identically across those five models.

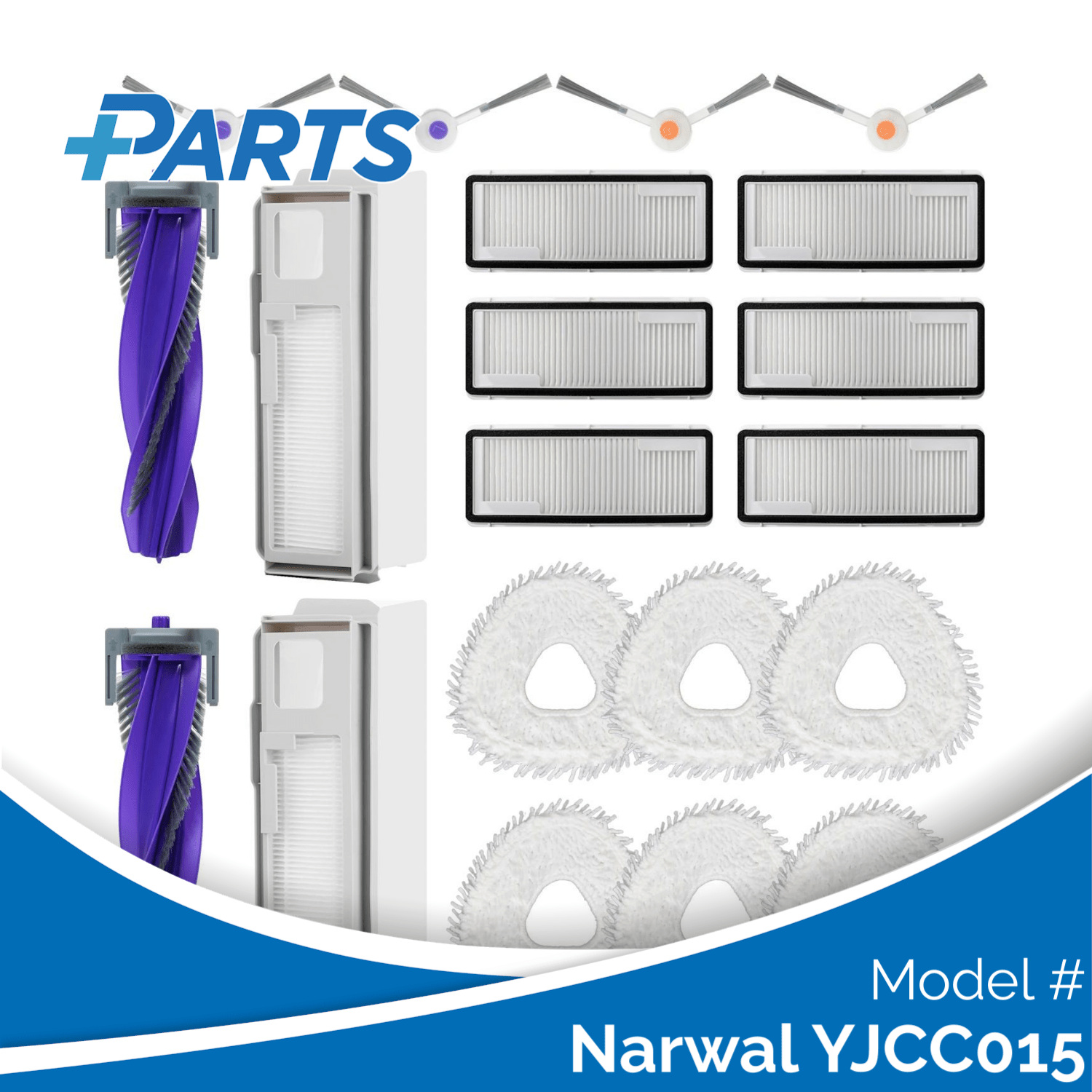

The kit supplies them as Plus.Parts® direct-fit alternatives to the original Narwal part CP-PJ-A00093-00-00: two floating roller brushes, four side brushes, six washable dust-bin filters, six triangular mop pads and two 1 L dock dust bags. Remove the floating roller every two weeks and inspect the bearing caps at each end – the floating arm rides closer to the floor than a fixed axle and collects hair at the end-caps more readily – then replace it every three to six months, or sooner if the arm no longer snaps level. Tap the HEPA-rated bin filter weekly, rinse it every four weeks, dry it for 24 hours and replace it every three months, because a loaded filter is the most common cause of reduced pickup and often masquerades as a battery fault.

Because the dock dries the pads with passive airflow rather than heat, machine-wash the triangular pads at roughly 40°C about once a month to keep mildew out of the weave – the app does not prompt this, and it is the main reason ambient-dock units develop a persistent musty smell. Replace both pads together on a one-to-three-month cadence since uneven thickness leaves patchy streaks. Clear the auto-detangling side brush shaft every two weeks and replace it every three to six months, change the 1 L dust bag every six to seven weeks, and empty the dirty-water tank weekly while wiping the tray scraper ribs. In humid weather, lift the pads out and air-dry them flat overnight rather than leaving them in the tray. Behind the set is a real team at VacuumReviews.eu – unsure whether your robot is badged YJCC015 or Freo X Ultra? The parts are the same, so reach out and we will confirm it.

At a glance

• Matched to Your Device – The floating roller, washable filters, triangular pads, side brushes and 1 L dust bags fit the YJCC015 brush bay, filter chamber and ambient dock without guesswork.
• Long-Lasting Components – HEPA-rated filters and durable Reuleaux pads chosen to keep absorbency across the ambient scrub-and-dry routine.
• Responsive Support – A real team stands behind every order, ready to help with model identification, delivery questions or anything else you need sorted.
